Telescopic folding pool grandstand TT-BETA-PW with plastic seats

0 Review(s)
14.104.PW.4
Sorry, This item is out of stock.

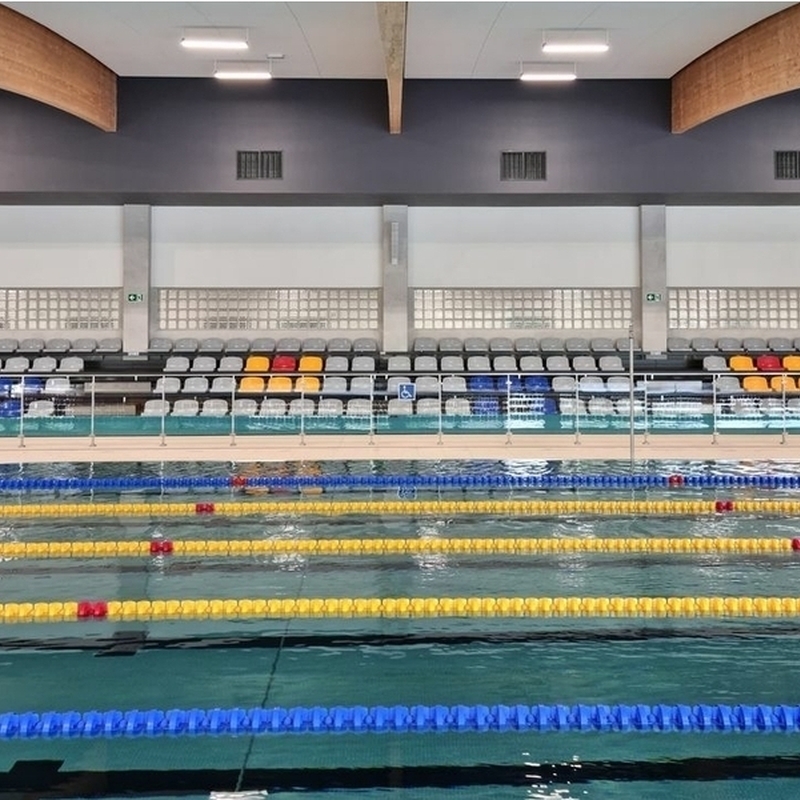

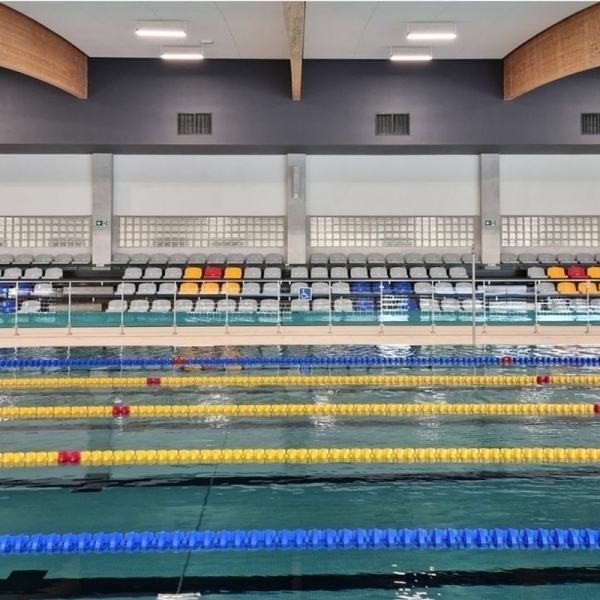

TT-BETA-PW telescopic folding pool stand with plastic seats.



Intended use: Closed objects - swimming pools


Basic features of the grandstand:

  • Module structure is made of steel profiles, powder coated
  • Modular construction (module lengths 300 cm, 350 cm, 400 cm, 450 cm, 500 cm, 550 cm, 600 cm)
  • Platforms with a thickness of 18 mm, made of non-slip board
  • Use of additional intermediate steps
  • Finishing the steps with corrugated aluminum sheets
  • Fastening elements made of stainless steel
  • Barriers made of stainless steel filled with glass
  • Side and front panels made of HPL plates with a thickness of 8 mm
  • Modern, safe and easy, frictionless way of unfolding and folding. Only one person is needed to operate the stand in this regard
  • Safe bearing casters with polypropylene tread ensure smooth operation when sliding and unfolding, while eliminating the risk of damaging the floor
  • Free color configuration (selection of colors according to RAL palette): the surface of metal parts, the color of seats, side plates and front stands
  • The grandstand is each time designed and customized individually for a given facility
  • Type of seat to choose: plastic (polypropylene) without backrest 11 cm, in the variant with backrest height of 25 or 32 cm. Certified for flame retardancy, toxicity and durability. Temperature resistant. Equipped with a drainage hole and a place intended for a plaque with a place number
  • Compliant with the Polish Standard (PN-EN)


Selected technical parameters:

  • Seat spacing: 450 mm
  • Seat type: Seats with backrest
  • Level difference between platforms: 350 mm
  • Height of intermediate steps: 175 mm
  • Width of entrances: 150 cm or 200 cm
Number of rows / Parameters 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Depth of stand after unfolding [cm] 225 320 405 490 575 660 745 830 915 1000 1085 1170 1255 1340
Depth of stand after folding [cm]. 120 120 120 120 120 120 120 120 120 120 120 120 120 120
Height of the last platform [cm] 70 105 140 175 210 245 280 315 350 385 420 455 490 525
Average number of seats per m.b.* 5,3 7,0 8,7 10,4 12,1 13,7 15,4 17,1 18,8 20,5 22,2 23,8 25,5 27,2

* The average number of seats given in the table may differ from the actual value in the finished project. This may be affected by seating conditions, seating layout, number of entrances, etc.

trybuna-teleskopowa-siedziska-plastikowe-z-oparciem-25-cm

Tribune running system information:

  • The grandstand system uses two types of securely bearing wheels:
    • Polyamide-polyurethane wheels (D=100 mm) used for stands with fewer rows
    • Aluminum-polyurethane wheels (D=100 mm) used for grandstands with a large number of rows
  • The whole grandstand can be adapted for transportation and storage according to the preferences of the ordering party.
