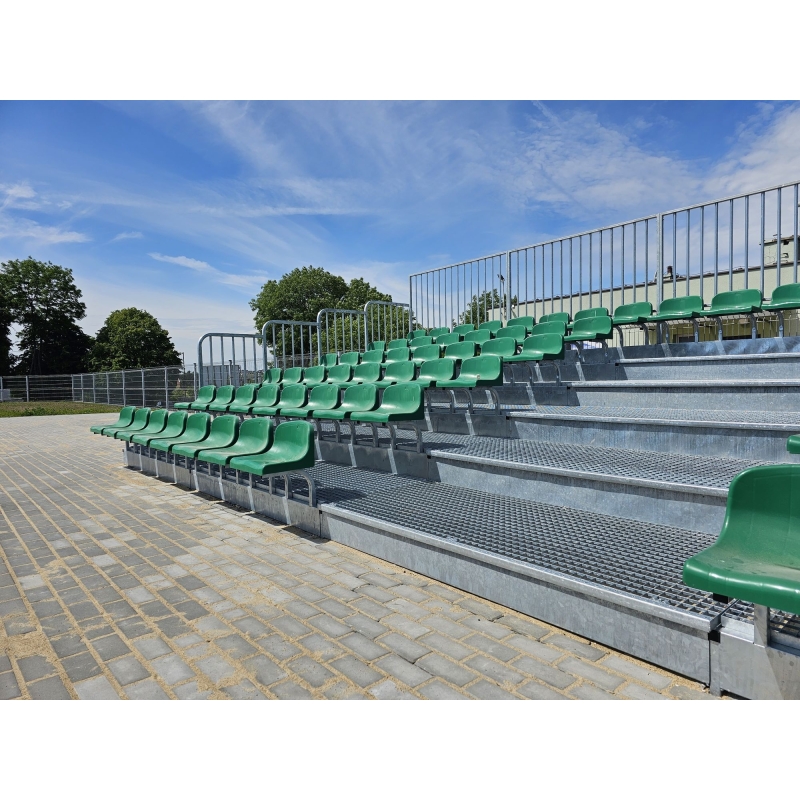

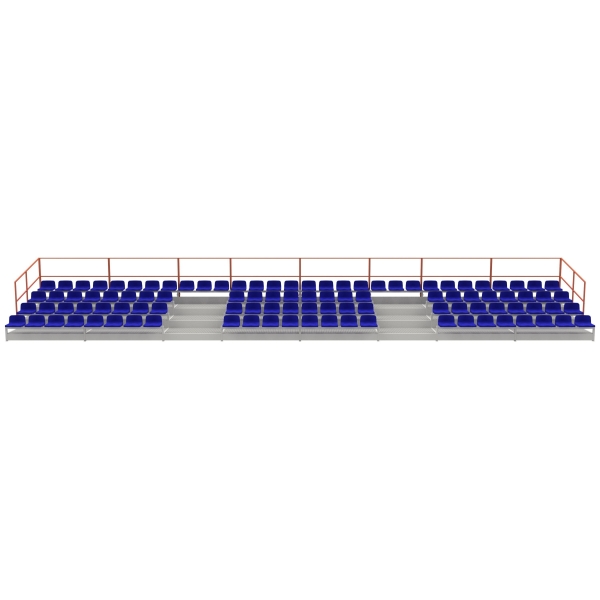

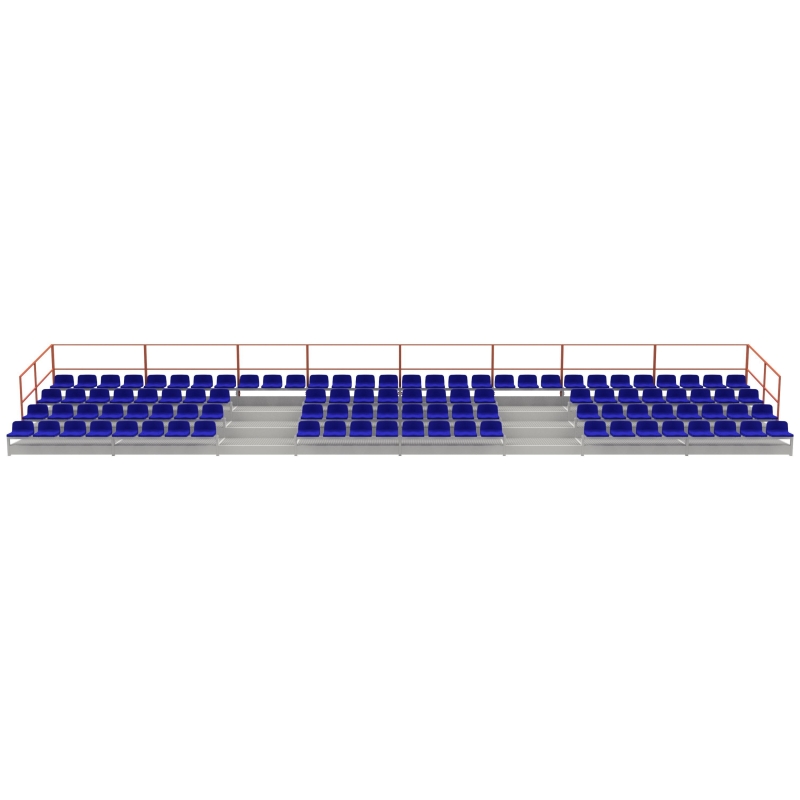

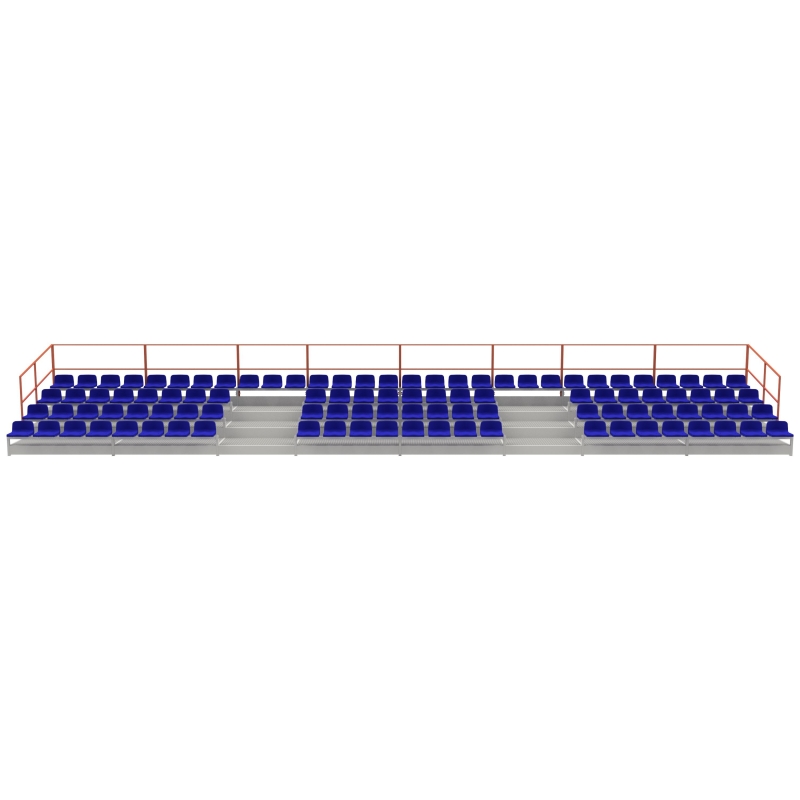

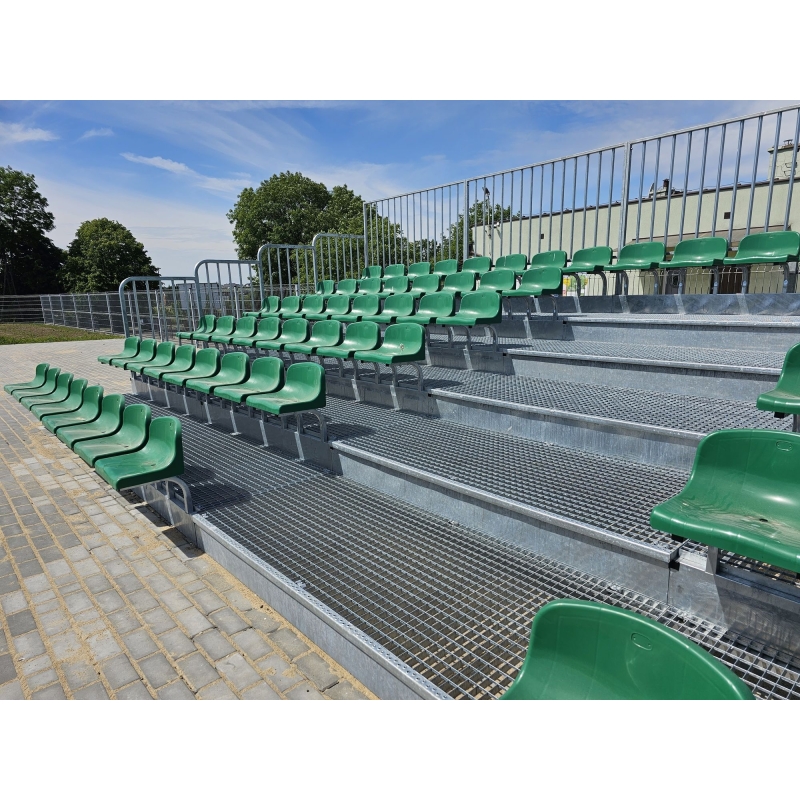

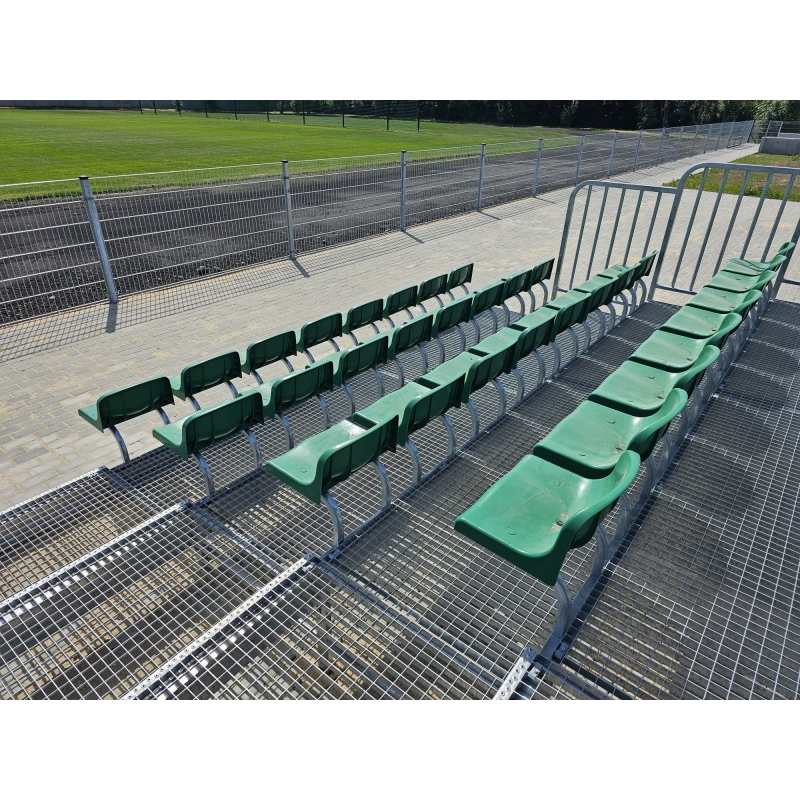

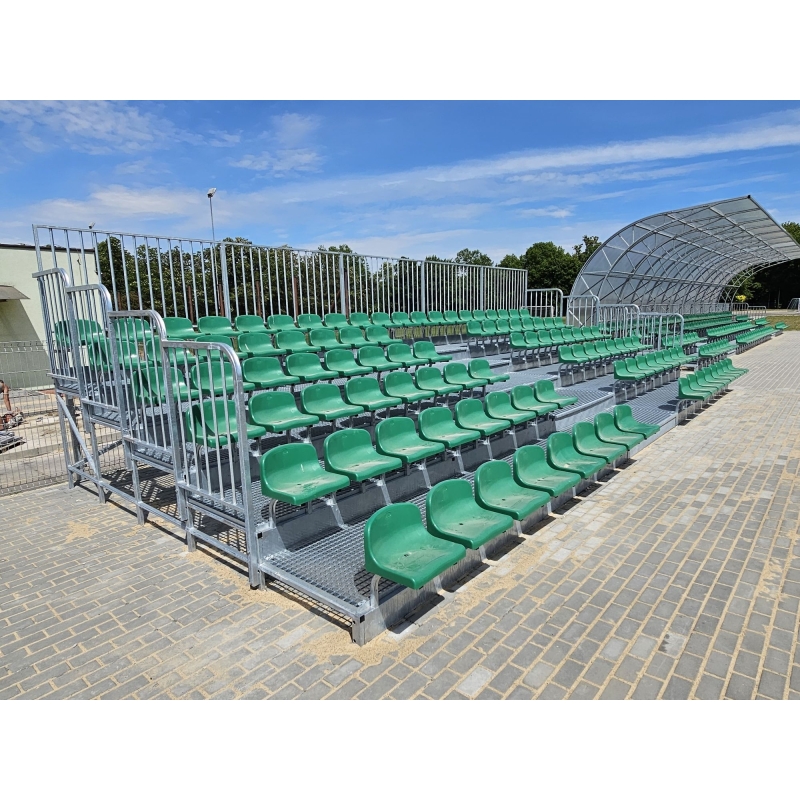

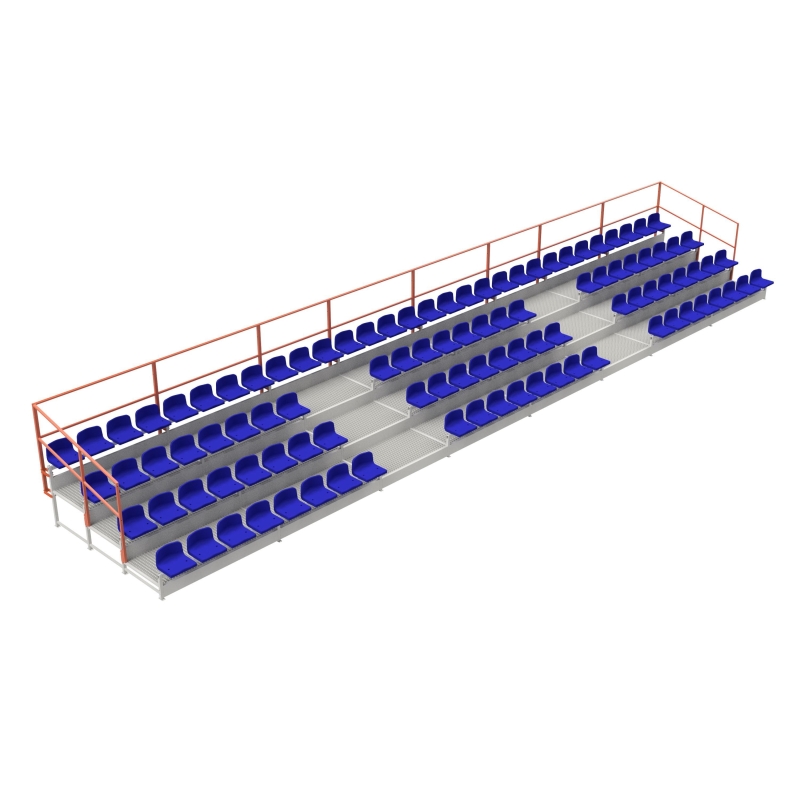

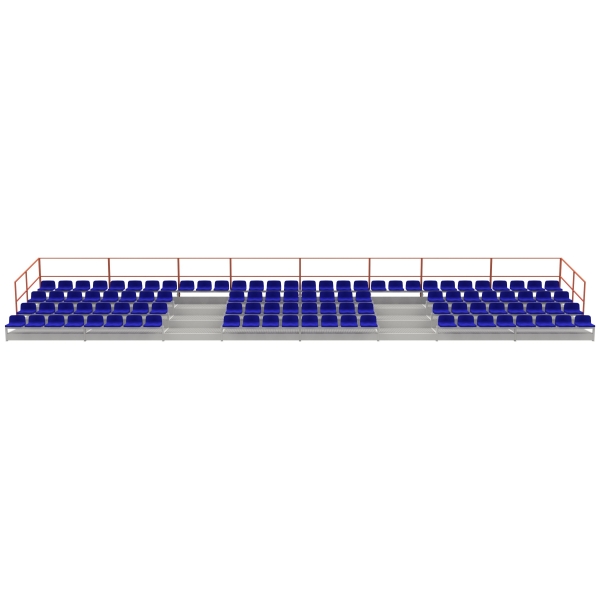

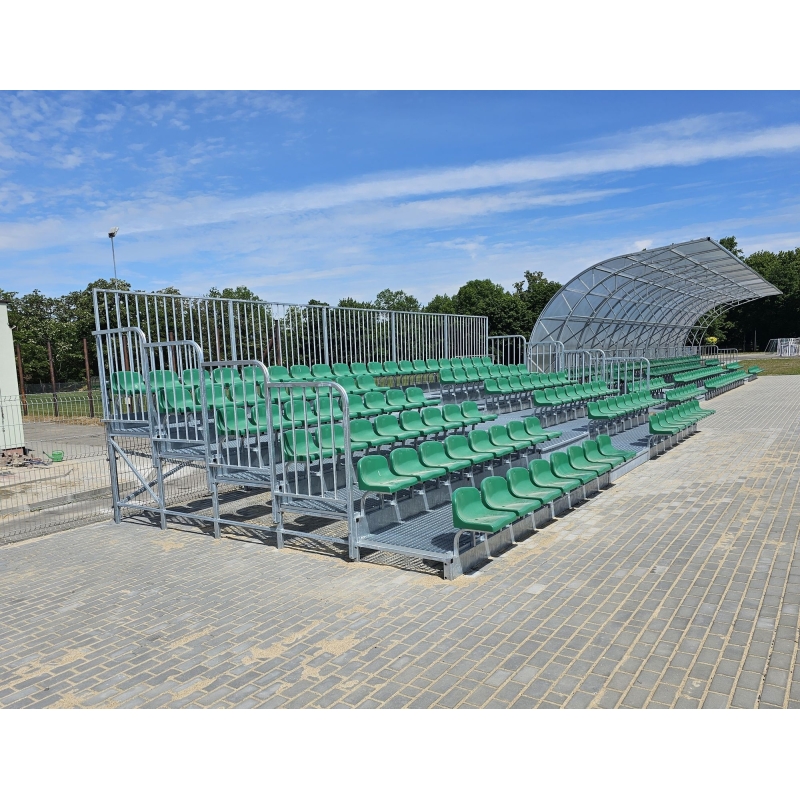

Fixed grandstand with plastic seats and podium, type TZZ.

Purpose: Open facilities - sports fields, stadiums.

Basic features of the stand:

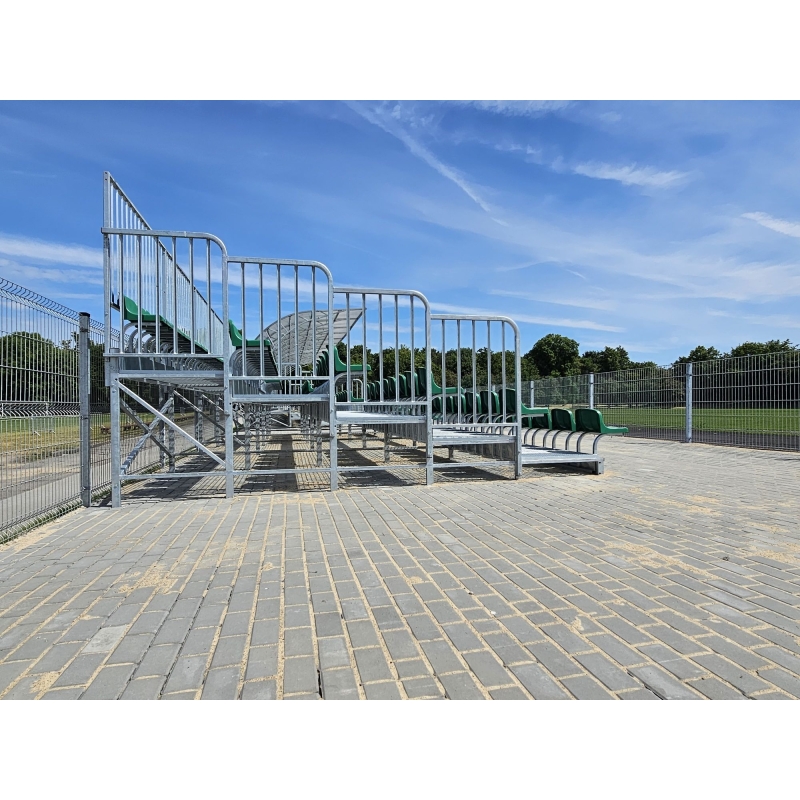

• The structure of the fixed grandstand is made of closed steel profiles, protected against weather conditions by hot-dip galvanizing.

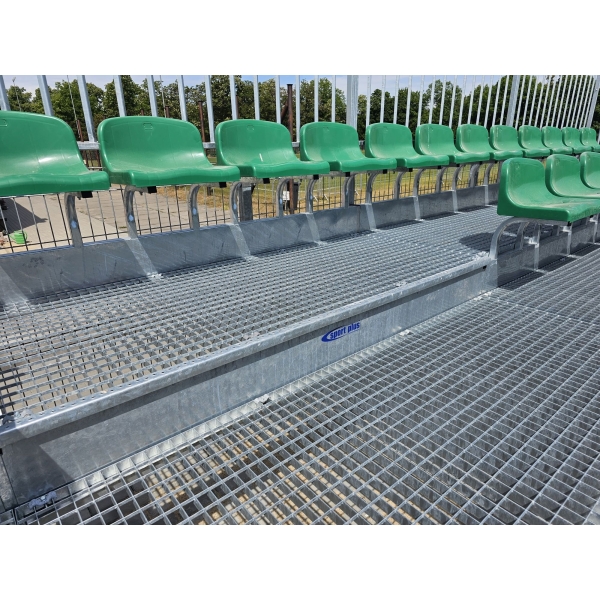

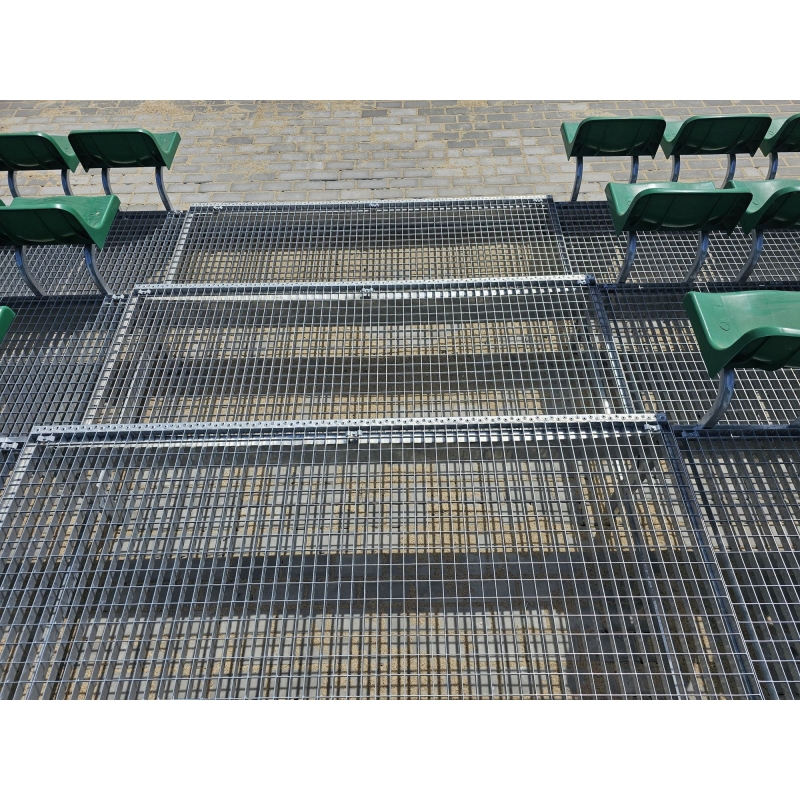

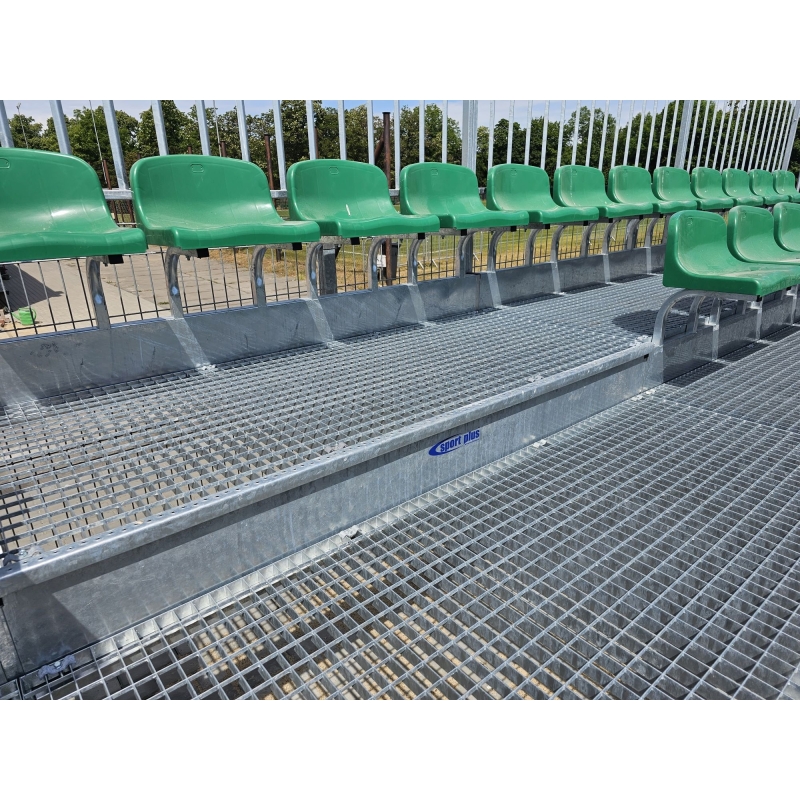

• The platforms of the grandstand are made of hot-dip galvanized steel Vema-type gratings, with an optional option for other solutions, such as corrugated sheet metal.
• The grandstand is equipped with side and rear guard rails, which can be powder-coated in standard orange color - RAL 2004.
• Each grandstand design is individually tailored to the specific requirements of the facility, in accordance with current safety regulations and audience standards.
• There is the possibility of any color configuration according to the RAL palette, including the surfaces of metal parts, railings and seats.
• The tribune meets the requirements of the Polish Standard (PN-EN).

Selected technical parameters:

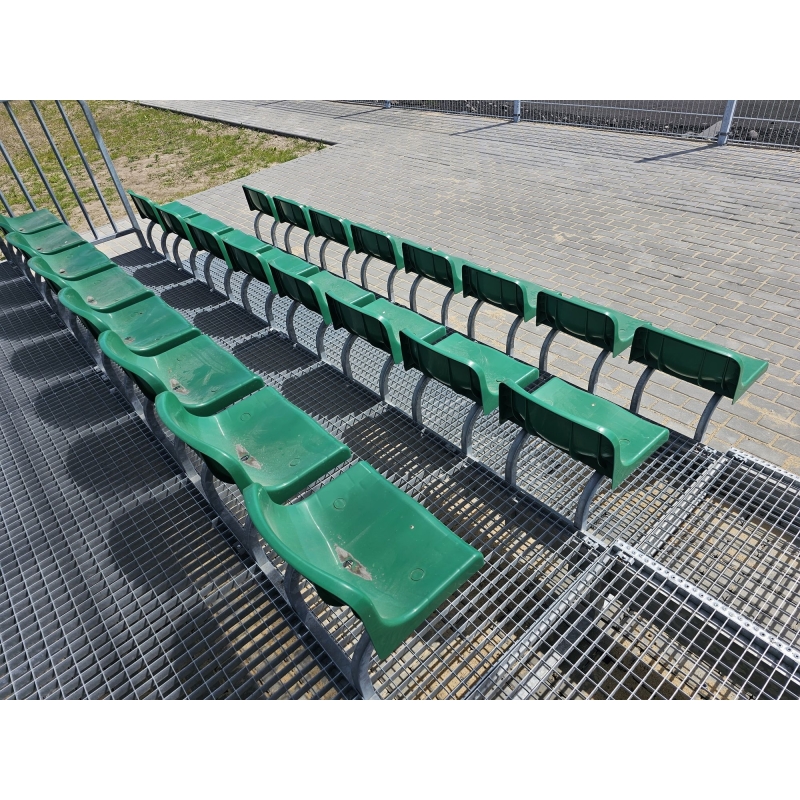

• Type of seat: made of plastic (polypropylene), available in a version without a backrest with a height of 11 cm and with a backrest with a height of 25 cm or 32 cm. Certified for flame retardancy, non-toxicity and durability. Reinforced support structure with additional ribbing under the seat and double back wall increases durability and protects against vandalism. The seats are resistant to UV radiation and varying temperatures. Equipped with a drainage hole and space for a seat number plate.
• Axial spacing of seats: 500 mm
• Level difference between platforms: 200 mm
• Width of entrances: >1.5 m or 2.0 m
• Height of intermediate steps: no intermediate steps
• Corrosion protection: hot-dip galvanizing

* The average number of seats given in the table may differ from the actual value in the finished project. This may be affected by seating conditions, seating layout, number of entrances, etc.
