Standing openwork grandstand with D-MAX seats - type TWP

0 Review(s)
14.102.PS.2
This merchandise is available to order

Basic features of the stand:

- The structure of the stationary grandstand is made of steel profiles, protected against corrosion by powder coating.

- The grandstand platforms are made of anti-slip panels with a thickness of 18mm (optionally, it is possible to cover them with a carpet).

- The grandstand is equipped with protective side railings (from the second row) and rear railings (in case the grandstand is not anchored to the wall) powder coated in RAL color.

- Each time a grandstand is designed and customized individually for a given facility, in accordance with current safety regulations and audience standards.

- Possibility of color configuration (selection of colors according to RAL palette): surface of metal parts, color of railings, color of seats.

- Possibility to equip the stand segments with wheels for convenient transport of the product.

- Certificate of quality PN-EN (Polish Standard).

Selected technical parameters:

Axial spacing of seats

500 mm

Clear passage width

565 mm

Level difference between platforms

200 mm

Height of intermediate steps

not applicable

Clear width of entrances

120 cm (1.25 m module), 145 cm (1.5 m module), 195 cm (2.0 m module)

Stand structure finishing

Powder coating (color from RAL palette)

Platform materials

Anti-slip boards, 18 mm thick, dark brown in color (covering the boards with a carpet, or using a different platform material under special order)

Maximum load of the platform

5 kN/m2 according to PN-EN 13200 standard

Seat type: plastic (polypropylene) with certificate of flame retardancy, toxicity and durability. Seats folded by gravity by which they allow to preserve the maximum width of the passage Resistant to UV radiation and temperature. Equipped with a space for a seat number plate.

Spring-loaded seat folding system. Made of polypropylene copolymer with a thickness of 3-5 mm. Includes supplementary material with UV stabilizer in accordance with EN ISO 4892-2:2013. Certified non-combustible in accordance with AFNOR M2 and 85 5852:2006 Item 12. The seat is characterized by high resistance to vandalism (BS EN 72727:2016 standard).

Our seat is designed with ergonomics in mind, the dimensions provide maximum comfort. All components are made of injection molded high strength material. Easy to clean and maintain. Smooth and glossy finish. Available in the following RAL colors.

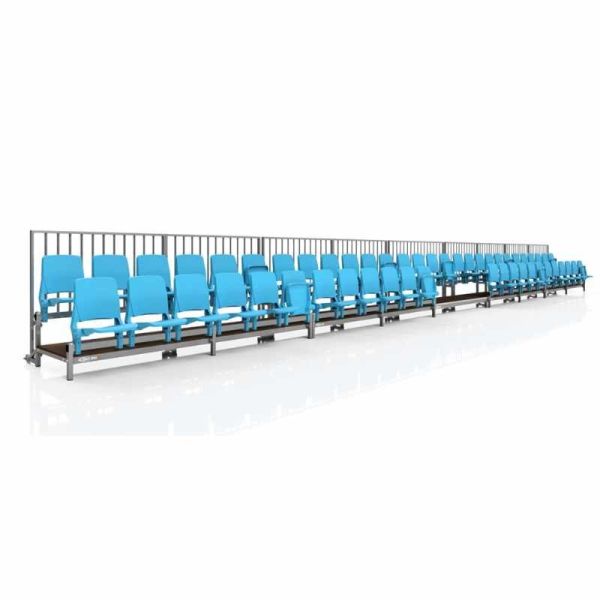

Example visualizations of the product.
