Fixed grandstand with plastic seats TZ300

Fixed grandstand with plastic seats TZ300

0 Review(s)
14.101.TZ300.2
Version: 2-row
This merchandise is available to order

Fixed grandstand with plastic seats TZ300 designed for outdoor facilities.

Purpose: Open facilities - sports fields, stadiums. trybuna-sportowa-stala-na-zewnatrz-siedziska-plastikowe



Basic features of the stand:

  • The structure of the fixed tribune is made of steel profiles, protected against atmospheric conditions by hot-dip galvanizing

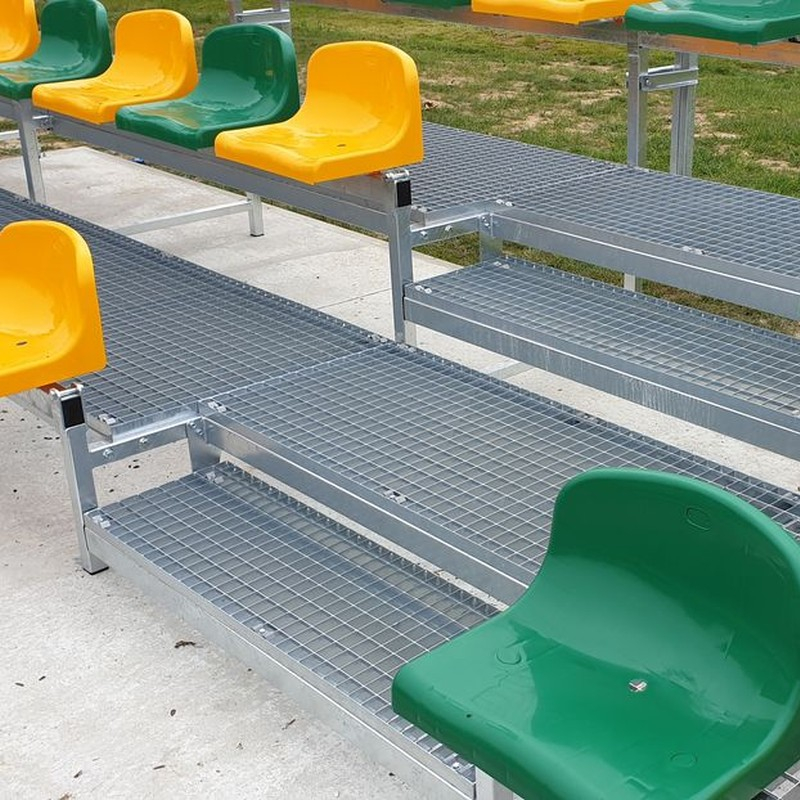

  • Grandstand platforms are made of hot-dip galvanized steel grates of Vema type (other solutions, such as corrugated sheet metal, are optionally available)

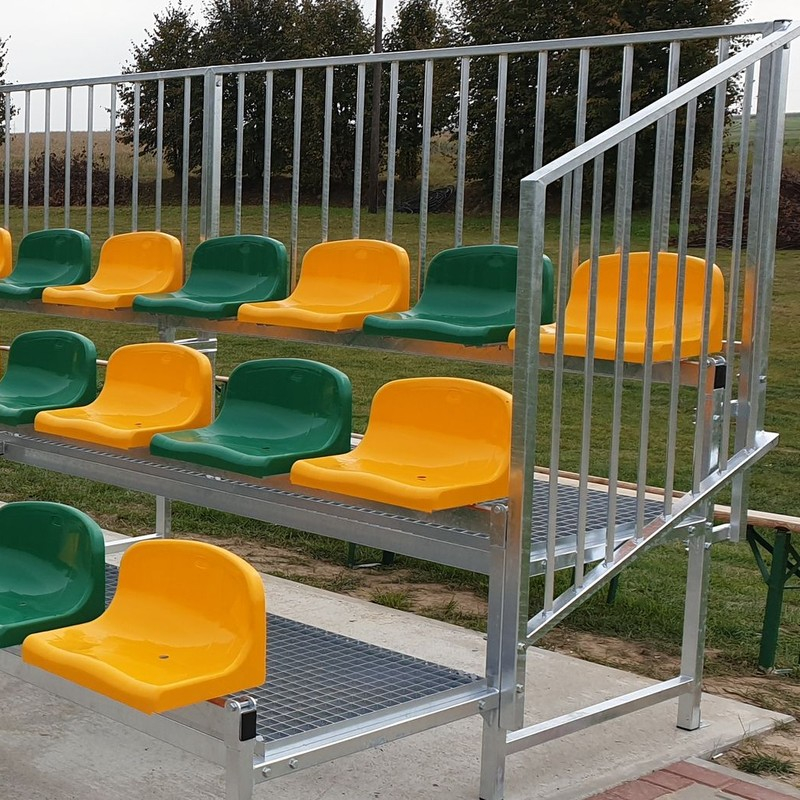

  • The grandstand is equipped with side and rear protective railings (standard galvanized, additional option can be painted according to RAL palette)
  • Tribune each time is designed and adapted individually to the object, in accordance with current safety regulations and standards for the audience
  • Free possibility of color configuration (selection of colors according to RAL palette): the surface of metal parts, the color of railings, the color of seats
  • Compliance with the Polish Standard (PN-EN)


Selected technical parameters:

  • Seat type: plastic (polypropylene) without backrest 11 cm, in the variant with backrest with a height of 25 or 32 cm. Certified for flame retardancy, toxicity and durability. Reinforced support structure with additional ribbing under the seat and double back wall maximize durability and counteract vandalism. UV and temperature resistant. Equipped with a drainage hole and a space designed for a seat number plate
  • Axial spacing of seats: 500 mm
  • Level difference between platforms: 300 mm
  • Width of entrances: >1.5 m or 2.0 m
  • Height of intermediate steps: 150 mm
  • Corrosion protection: hot-dip galvanizing
Number of rows / Parameters 2 3 4 5 6 7 8
Stand depth [cm]. 127 212 297 382 467 552 637
Height of the last platform [cm] 30 60 90 120 150 180 210
Average number of seats per m.b.* ~3,5 ~5 ~6,5 ~8 ~9,5 ~11 ~12,5

* The average number of seats given in the table may differ from the actual value in the finished project. This may be affected by seating conditions, seating layout, number of entrances, etc.

Contact:

Fixed grandstand with plastic seats TZ300
14.101.TZ300.2
0
Catalog no. Variant Price Current stock
14.101.TZ300.2 Version - 2-row 0.00 € 0
14.101.TZ300.3 Version - 3-row 0.00 € 0
14.101.TZ300.4 Version - 4 rows 0.00 € 0
14.101.TZ300.5 Version - 5 rows 0.00 € 0
14.101.TZ300.6 Version - 6 rows 0.00 € 0
14.101.TZ300.7 Version - 7 rows 0.00 € 0
14.101.TZ300.8 Version - 8 rows 0.00 € 0
