Lifting curtain, double-layer, acoustic

0 Review(s)
6.06.2.2
Sorry, This item is out of stock.

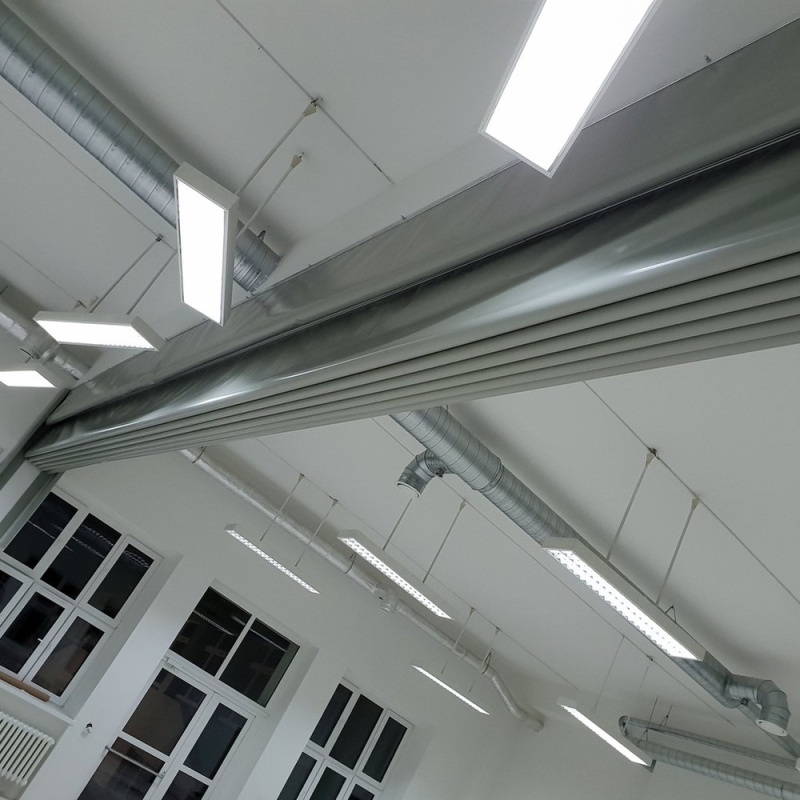

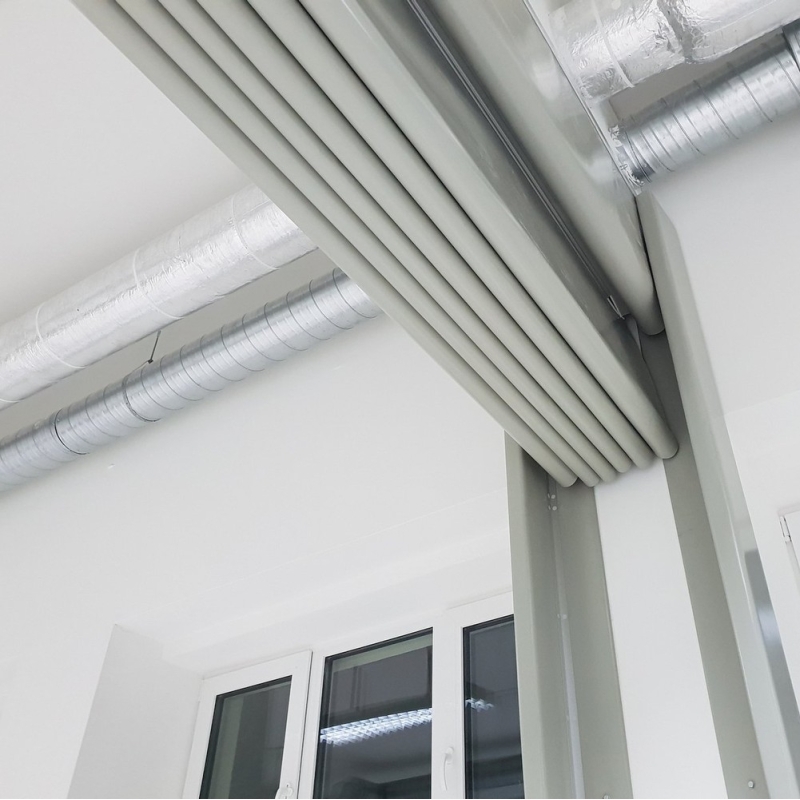

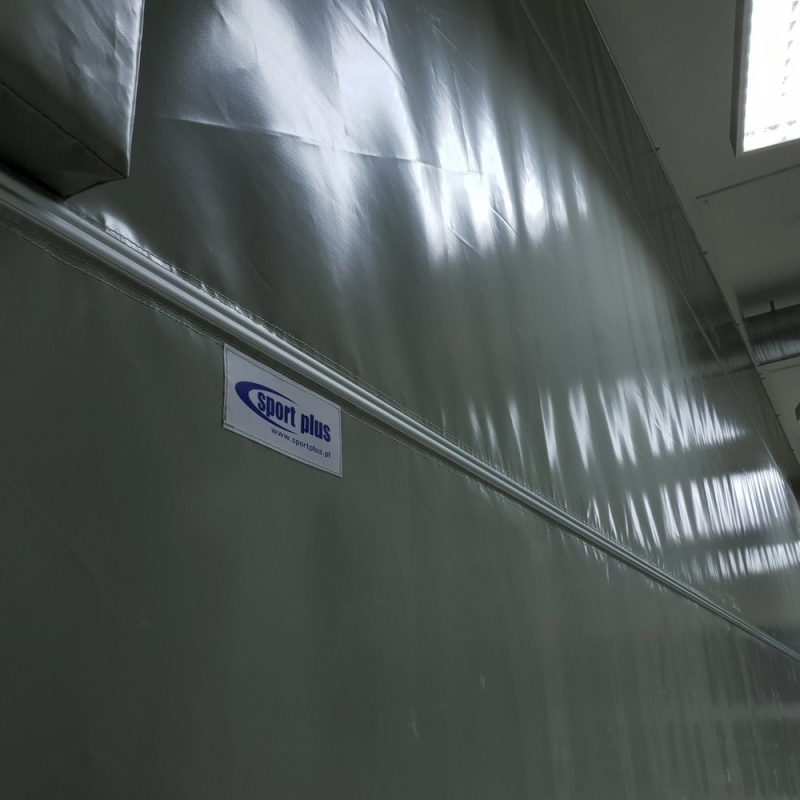

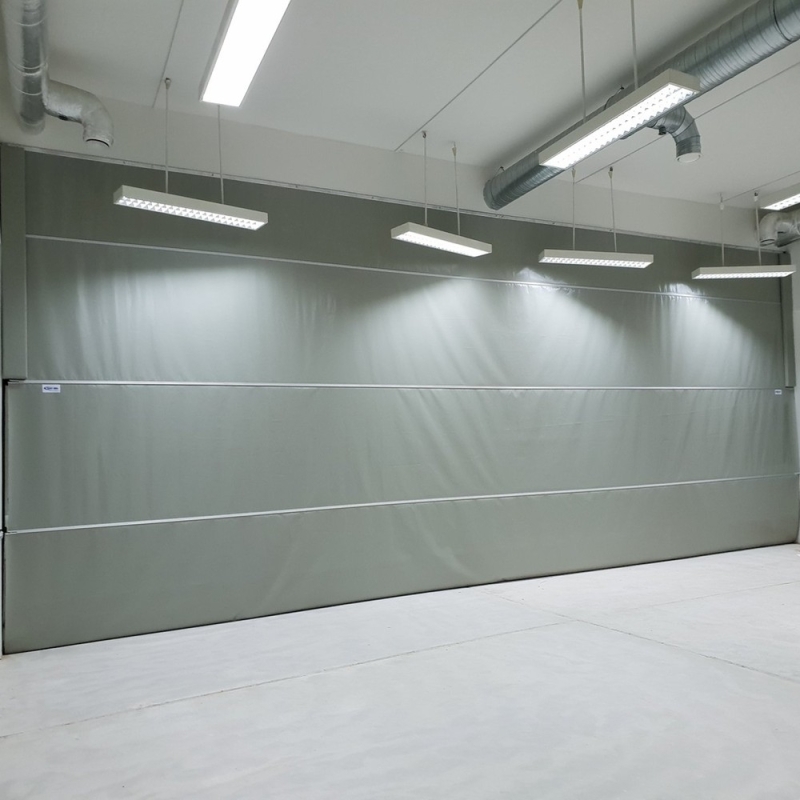

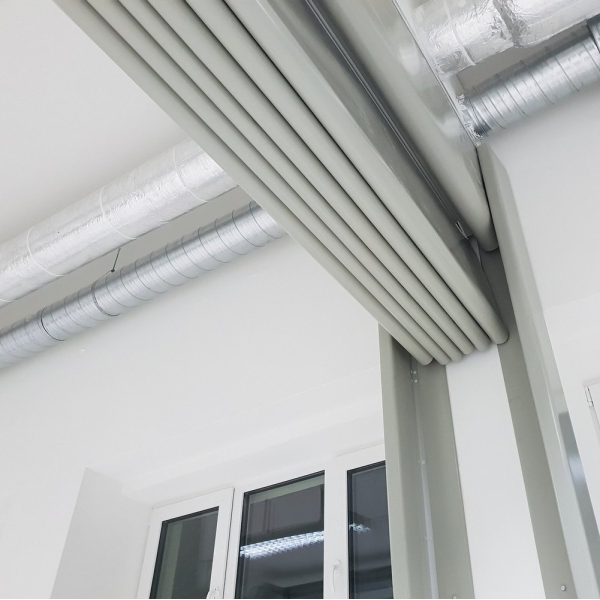

System of electrically raised soundproof curtains.
Two-layer
curtainseparating a sports hall into two (or more) parts, dedicated to facilities of all types (sports halls, fair halls, production halls, concert halls, banquet halls, etc.), where there is a need for division and sound insulation.

Basic information :

  • The curtain system consists of an electric motor and fabric
  • The vertical lifting of the curtain fabric is carried out by an electric motor (230V, 180-250W with a gearbox) and strips (located on the inside of the curtain) wound on a set of drums placed on a rotating shaft
  • Operation is carried out using a controller installed on the wall
  • Long-life motor is equipped with an emergency device that stops operation in case of problems with the network or structure
  • Washable, fire-resistant PVC fabric with increased resistance to mechanical damage forms a double (separated by about 50 cm) soundproof layer lowered and raised vertically
  • Panel construction of the curtain (PVC joined by system aluminum profiles) allows easy and fast replacement of individual elements, in case of, for example, damage to the curtain, or change of its color concept
  • Hidden threads and seams, so the design eliminates the risk of injury to users and damage to the material itself
  • Each project of the curtain is individually adapted to a given sports facility
  • Standard colors of the curtain material: gray and beige


Technical specifications:

  • Anchor material: joined PVC panels with a weight of 1200gr/m2
  • Fire resistance according to standards: DIN 4102 B2, SIS 650082
  • Sound reduction: 30dB (approximate value, depending on the environmental conditions existing at the sports facility)
  • Additional solutions: doors, lower profile for the surface, material cutout for the grandstand, sound-absorbing package


In order to receive a curtain design, pricing, specifying the color and type of material, please contact the
technical and commercial department.
