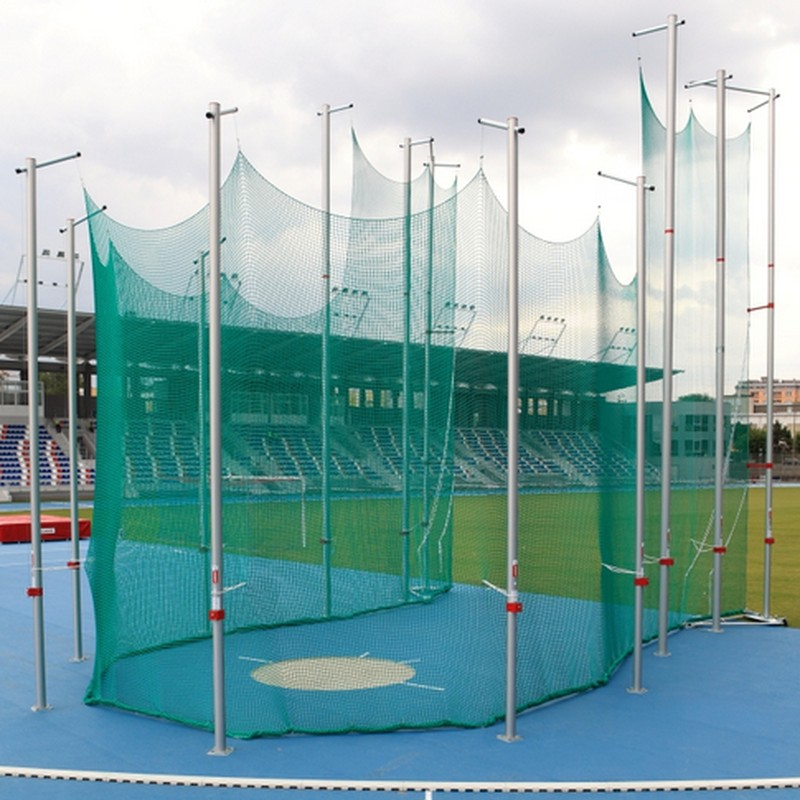

Aluminum training cage for the hammer and discus throw.
Height 7 m, gate height 9 m, NO COTEWS!

Cages for the discus and hammer throw represent an innovative approach to the construction of equipment for athletics. The idea of introducing independent aluminum poles holding the net allowed us to design a high-quality product easy to install as well as dismantle, characterized by simple operation and high reliability.

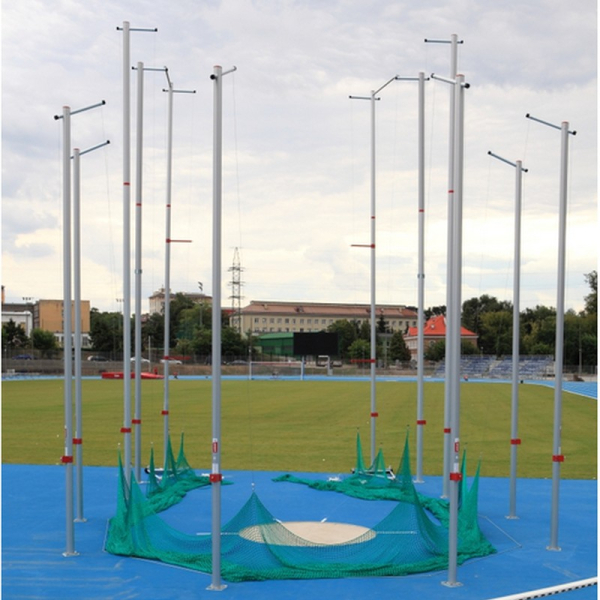

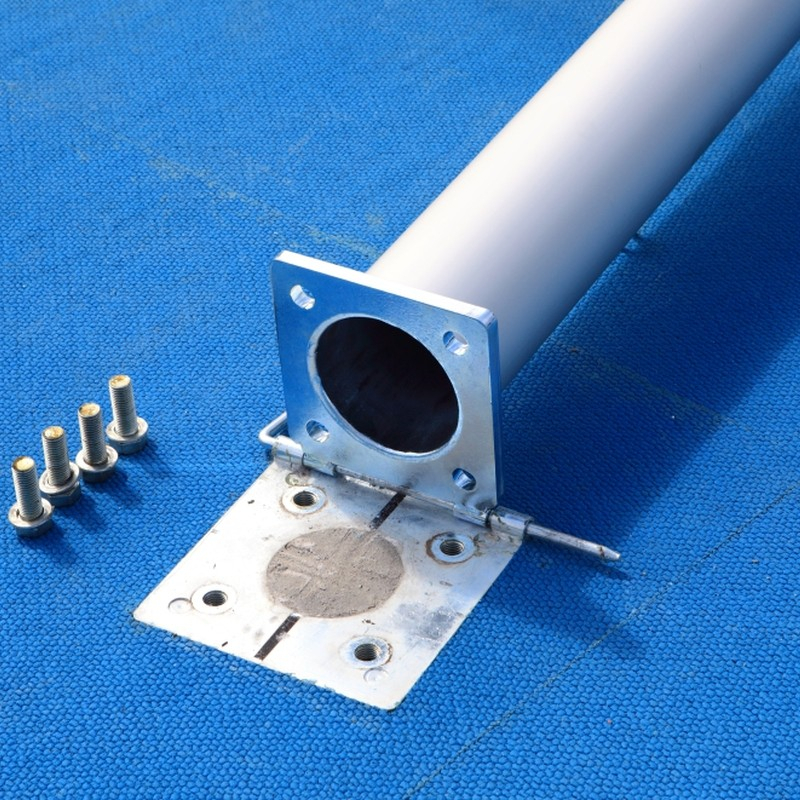

The structure of the cage is made up of aluminum poles, anodized in silver color and approved protective net. The poles are attached to special anchors embedded in concrete foundations. Each post is equipped with a self-locking mechanism for raising and lowering the net with a crank. The tension of the net in the lower part of the cage is carried out with a steel cable and hooks. The use of special flat anchors has eliminated the problem of water accumulation in the lower part of the cage and its subsequent corrosion. Each anchor is equipped with a pair of hinges, by means of which it connects to the base of the pole. With this connection, the pole can be easily and safely lifted to a vertical position and bolted to the anchor.

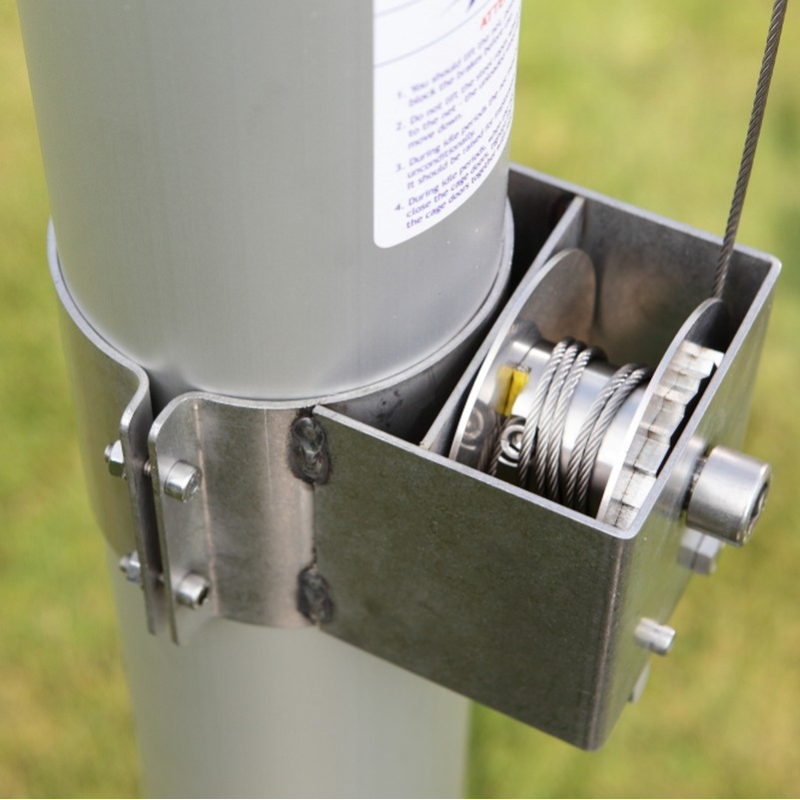

When the cage is not in use, the anchors can be covered with a synthetic surface and the area can be used for other purposes as well. The two movable panels that make up the cage's gate move on carriages that have two brakes and an additional restraint option in the form of a steel pin. The steel rope and hooks provide better tension for the mesh than traditional sandbags. As a result, the mesh forms a compact and resilient screen to absorb the impact of the disk and hammer. The self-locking mechanism for lifting the net is characterized by simple operation and high reliability.

The body of the mechanism is galvanized and additionally powder coated. All ends of the poles are finished with caps that provide an aesthetic appearance and protection against water getting inside the structure. The use of aluminum for the construction of the cages made it possible to significantly reduce the time of their assembly (disassembly), which is carried out without the use of a crane.

Price on request.
